Our packaging solutions are widely used across industries such as pharmaceuticals, cosmetics, food, and health supplements. Ideal for packaging products like sugar, pharmaceutical granules, coffee granules, and granular desiccants, our equipment ensures precision and quality for your products.
Yellow sugar
Salt
White sugar
Powder
Probiotics
Desiccant
Pepper
SeaweedOur packaging machine is designed with advanced features to elevate your production experience:

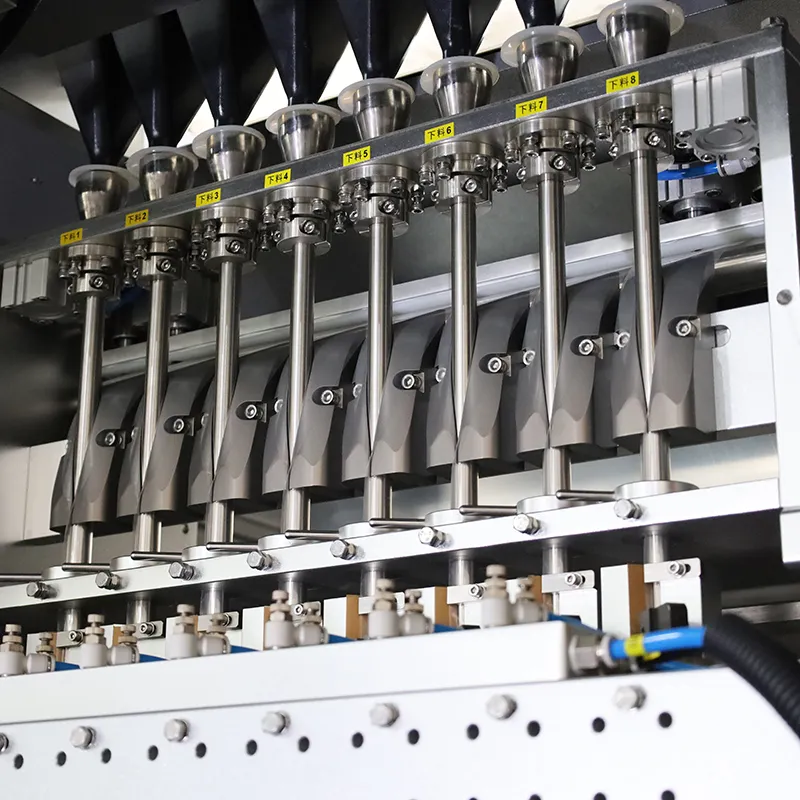

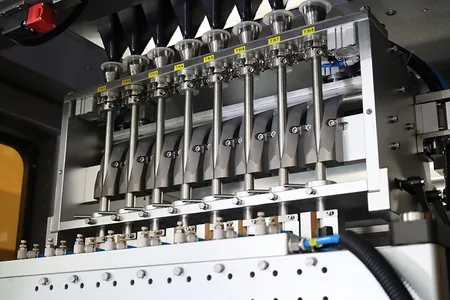

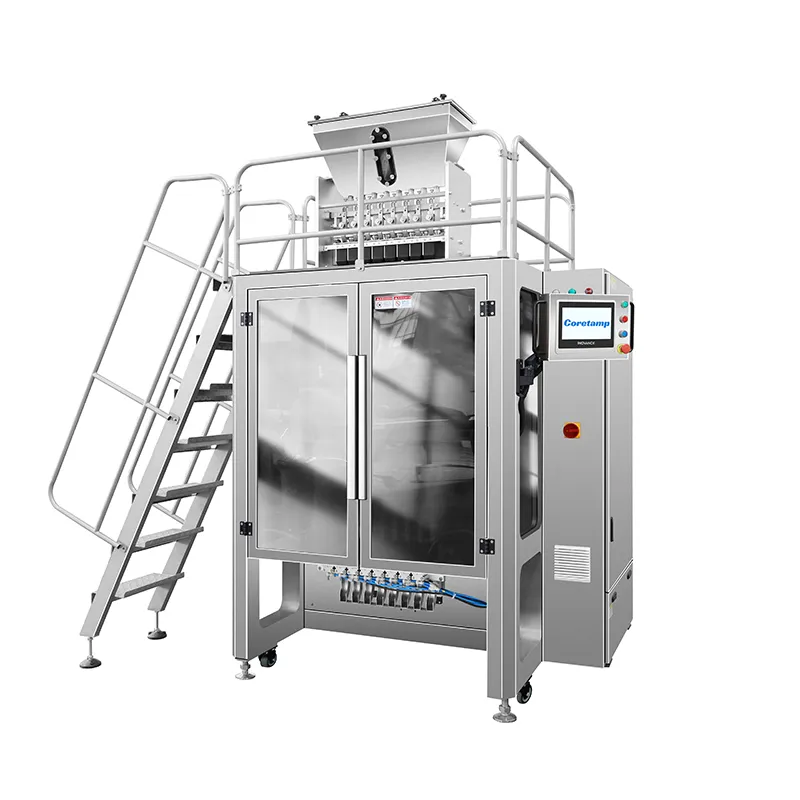

This machine is perfect for your multi-lane packaging needs, handling uniform granular materials with precision and efficiency across 4 to 10 lanes. Featuring a volume-based dosing system with high-accuracy cups made from SUS316L stainless steel, it ensures exceptional precision and high-speed filling.With a maximum roll film width of 900mm, it produces granular packaging bags ranging from 16-50mm in width and 40-160mm in length. Each lane's dosing can be individually adjusted, and the alternating refill method guarantees speed and accuracy. Operating at speeds of 20-80 cuts per minute, the machine offers exceptional productivity.

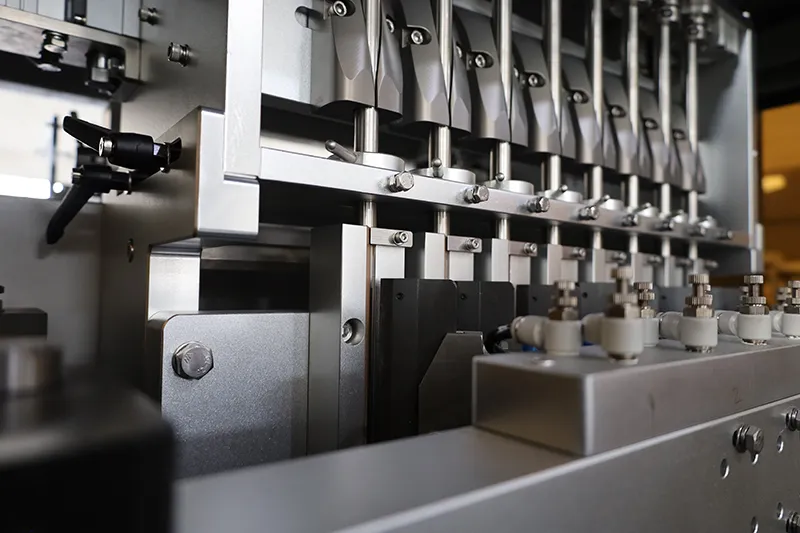

All parts in contact with your materials can be quickly disassembled and reassembled, making maintenance effortless. Its 45° vertical sealing device delivers superior sealing quality and opens from the center for easy maintenance. Let this machine bring efficiency and reliability to your production line. Contact us today to learn more!

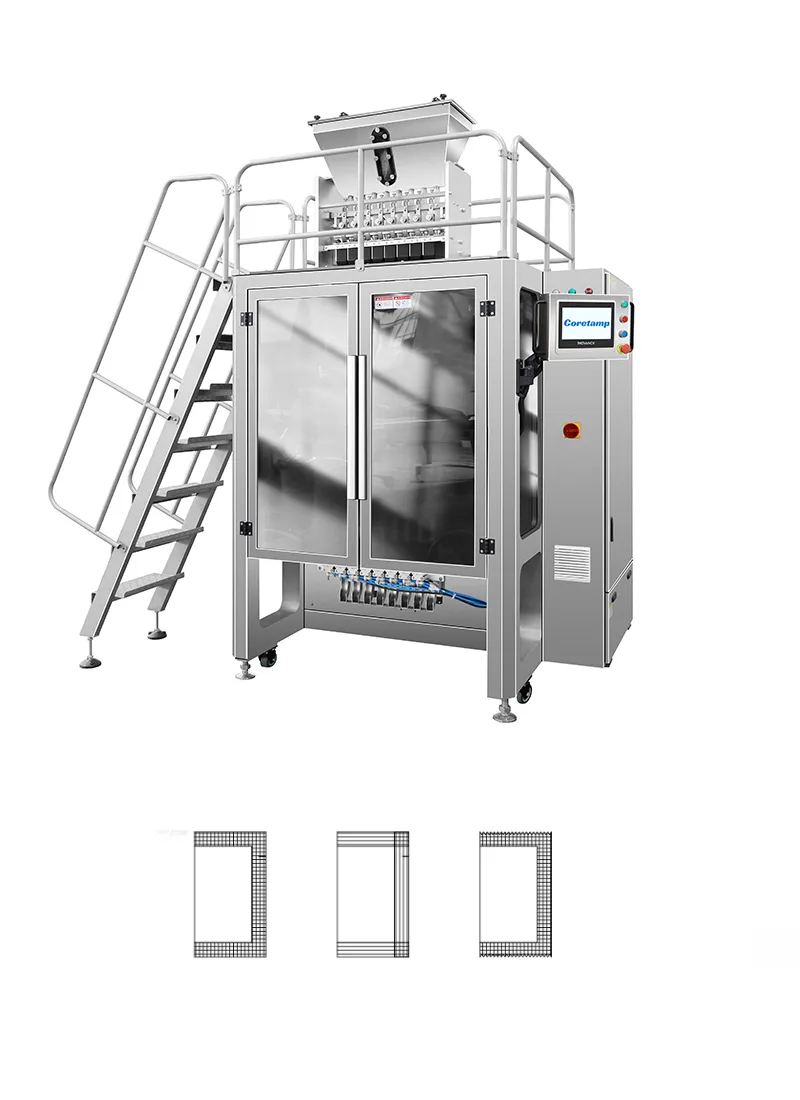

Seal Type: 3 Side Seal
| Model | |
| Number of Packaging Lanes | 4 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.640mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 700kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 6 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.640mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | |
| Number of Packaging Lanes | 8 |
| Dosing System | Oscillating Cup Doser |
| Packaging Speed | 20-80 Cuts/min/Lane |
| Film Roll Width | Max.900mm |
| Inner Diameter of Film Roll | 75mm |
| Outer Diameter of Film Roll | Max.400mm |
| Stick Pack Width | 16-50mm |
| Stick Pack Length | 40-160mm |
| Seal Type | 3 Side Seal |
| Cut Type | Round Cut, Straight Cut, Zigzag Cut |
| Power Supply | 220V, 1P, 50/60HZ, 11kW |
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) |
| Machine Weight | Approx. 1200kg |
| Film Thickness | 0.06-0.1 mm |
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. |
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine |
| Model | | |||
| Number of Packaging Lanes | 10 | |||
| Dosing System | Oscillating Cup Doser | |||
| Packaging Speed | 20-80 Cuts/min/Lane | |||
| Film Roll Width | Max.640mm | Max.640mm | Max.900mm | Max.900mm |
| Inner Diameter of Film Roll | 75mm | |||
| Outer Diameter of Film Roll | Max.400mm | |||
| Stick Pack Width | 16-50mm | |||
| Stick Pack Length | 40-160mm | |||
| Seal Type | 3 Side Seal | |||
| Cut Type | Round Cut, Straight Cut, Zigzag Cut | |||
| Power Supply | 220V, 1P, 50/60HZ, 11kW | |||
| Air Pressure (Consumption) | 0.6-0.8MPa (65-80L/min) | |||
| Machine Weight | Approx. 1400kg | |||
| Film Thickness | 0.06-0.1 mm | |||
| Film Material | OPP/CPP, OPP/PE, BOPP/VMPET/PE etc. | |||
| Optional | Diaphragm Pump, Ribbon Coding Machine, Vacuum Feeder, Laser Marking Machine, Finished Product Conveyor, Magnetic Pump Filling Machine | |||
Your partner for customizable and efficient packaging solutions
